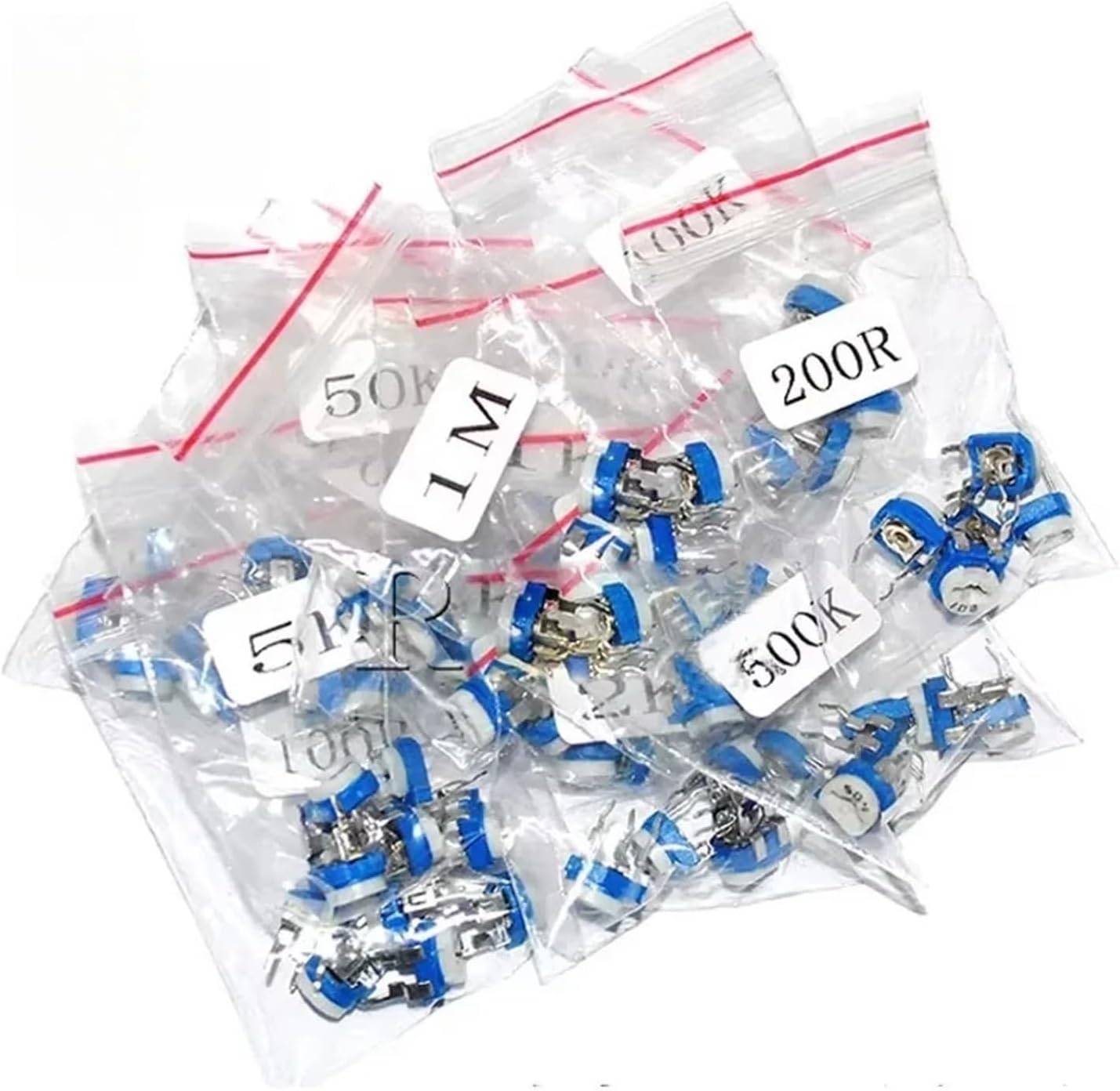

65/100PCS RM065 Trimmer Potentiometer Adjustable Resistor Potentiometer Kit 100/200/500/1K/2K/5K/10K/20K/50K/100K/200K/500K/1M(100ohm-1Mohm-65pcs)

VaristorsType 65PCS(without case):Parts NO.: Blue White variable resistor 100R~1M Potentiometer Assorted Kit Quantity : 65PCS Electronics Description : Specifications as follows: 100 ohm (101) 200 ohm (201) 500 ohm (501) 1K(102) 2K(202) 5K(502) 10K(103) 20K(203) 50K(503) 100K(104) 200K(204) 500K(504) 1M(105) Type 100PCS(with case)Product Parameter:1.Brush: copper2.Rotating : 60~150g. cm3.Resistor: Electric board4.Stop strength:>500g. cm5.Middle leg: iron material, surface polished with tin6.Resistance range: 100~2m7.Corns: iron, surface polished with tin8.Resistance deviation: ± 20%9.Curved foot: iron material, surface polished with tin10.Resistance change: B11.Rubber cover: plastic POM, color: white, voltage: 50V12.Rubber frame: plastic PBT, color: blue, rated: 0.1W13.Rotation angle: 200 ° ± 20 °14.Mechanical strength: The resistance piece can withstand a pressure of 1kg without cracking15.Residual resistance value: no more than 5% of the nominal resistance value, with a limit of no more than 30 16.Rotation life: After 100 cycles of no-load rotation, the resistance change limit is ± 15%17.Load life: Load rated power for 3 hours, with a resistance variation limit of ± 5%"Product Application:Widely used in electrical appliances, audio equipment, communications, medical facilities, security products, UPS power supplies, video recorders, MP3 players, VCDs, telephones, and other equipmentDescription:100% and There have 10values 10pcs for each, total 100pcs1. 500R(501)2. 1K(102) 3. 2K(202) 4. 5K(502) 5. 10K(103)6. 20K(203) 7. 50K(503)8. 100K(104)9. 200K(204)10. 1M(105)Quantity : 100pc==========Hign-concerned Chemical : NoneAccuracy : 1%Operating Temperature : StandardRated Power : 0.25WResistance Tolerance : 10%Type : Variable ResistorOrigin : Mainland Condition : Resistance : potentiometer 10kUnit Type : Variable ResistorsPackage Weight : Trimpot Trimmer PotentiometerPackage Size : potentiometer 100 ohm 101keywords : potentiometer 200 ohm 201keywords 1 : potentiometer 500 ohm 501keywords 2 : potentiometer 1K ohm 102keywords 3 : potentiometer 2K ohm 202keywords 4 : potentiometer 5K ohm 502keywords 5 : potentiometer 10K ohm 103keywords 6 : potentiometer 20K ohm 203keywords 7 : potentiometer 50K ohm 503keywords 8 : potentiometer 100K ohm 104keywords 9 : potentiometer 200K ohm 204keywords 10 : potentiometer 500K ohm 504keywords 11 : potentiometer 1M ohm 105

• Varistors
• 65/100PCS RM065 Trimmer Potentiometer Adjustable Resistor Potentiometer Kit 100/200/500/1K/2K/5K/10K/20K/50K/100K/200K/500K/1M
